BeoLiving Intelligence | Specifications

Hardware specifications


Feature Description
Connectivity
  • Ethernet with PoE 802.3af
  • USB (loads up to 500mA)
Power
  • 5V DC 3W
  • Connector:
    • Barrel jack
    • [+] pin; [-] sleeve
    • 5.5mm x 2.1mm
  • Heat output: 10.24 BTU/hr
Accessories included in the box
  • 5V, 2A (10W) AC/DC Wall Adapter
  • Wall/Ceiling Bracket
Operating Temperature Range
  • 0°C to 60°C
Dimensions
  • Length: 127mm
  • Width: 127mm
  • Height 30mm

Connection Panel

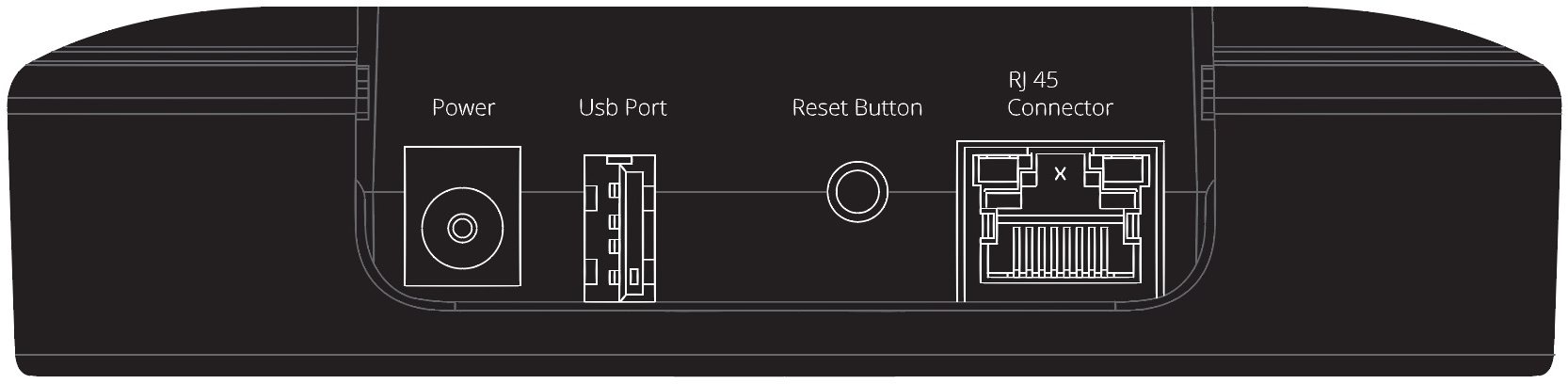

Ports

Located on the back of the BLI:

  • Power: Powers the BLI.
  • USB Port: Used for service purposes.
  • System Reset Button: Press & hold for 8 seconds to reboot the system.
  • RJ 45 Connector: For connecting the BeoLiving Intelligence to a local network (PoE capable).
